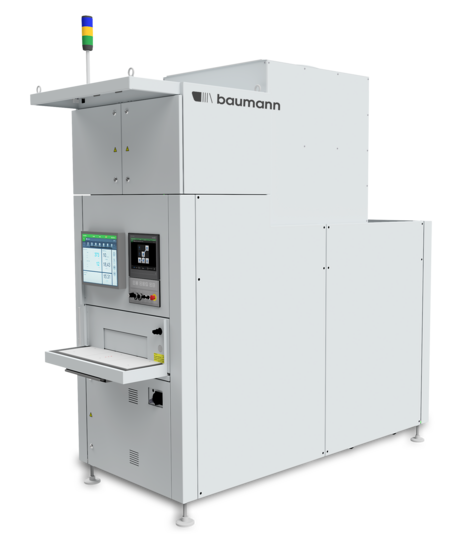

BAUMANN radar|box
End-of-line radar testing for series production
High-precision radar test solutions for automotive and industrial applications
Our end-of-line (EOL) radar test systems enable highly accurate and reproducible testing of radar sensors directly at the end of the production line. The combination of robot-guided motion, a modular system architecture and high-performance absorber technology ensures maximum precision, efficiency and process reliability in automated series production.
The system design is highly flexible and ranges from prototype development in single-unit production through to series production.
Our end-of-line radar test solutions support a wide range of demanding applications:
- Automotive (including ADAS, parking assistance and level measurement)
- Air traffic control
- Satellite-based and ground-based radar systems
- Railway technology
- Ground-penetrating radar (GPR)
- Geotechnical engineering
- Structural analysis
- Medical technology
Ihre Vorteile auf einen Blick:
- End-of-line radar testing directly in series production
- High measurement accuracy and repeatability
- Modular system architecture for maximum flexibility
- Robot-guided, highly dynamic motion profiles
- Scalable, fully automated and 24/7 capable
Modular System Architecture for Radar Testing
Our end-of-line (EOL) radar test system is based on a modular system architecture. This allows a wide range of radar sensor types to be tested reliably on a single platform – regardless of housing design, dimensions or connector variants.
Platform: ro|box
The ro|box forms the central element of the system and is responsible for automated handling as well as the realistic simulation of the test object.
Depending on the application requirements, either a 2D rotary unit or a 3D robot is used:
- Elevation: ±30°
- Azimuth: ±110°
- Robot-guided, high-precision motion profiles
Adapters & Gripper Technology
Custom-designed grippers are used for each test object. Equipped with integrated absorbers, they ensure optimal electromagnetic shielding during testing. This guarantees consistently high measurement quality across the entire series.
Absorber Box & Target Modules
The sound-insulated, electromagnetically shielded and fully enclosed absorber box reliably eliminates external influences and creates stable test conditions.
Various configurations are available depending on space requirements, cycle time and application.

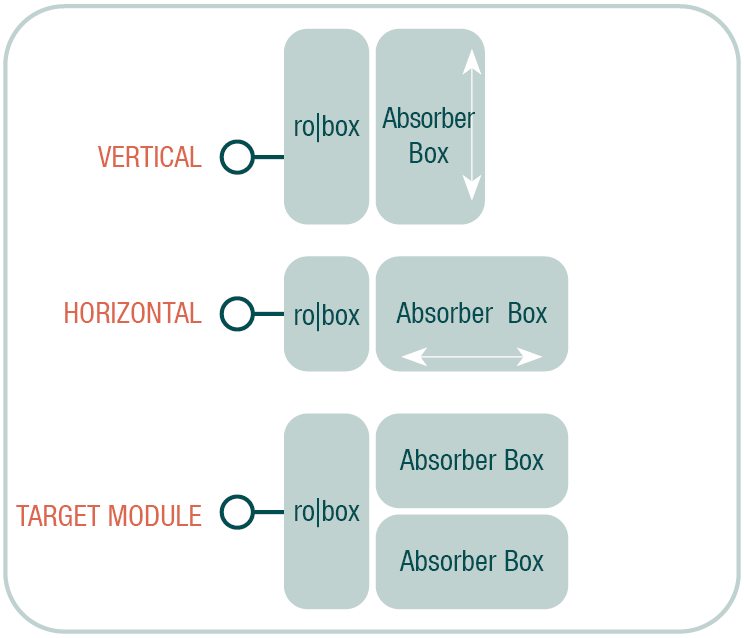

Absorber Box Variants

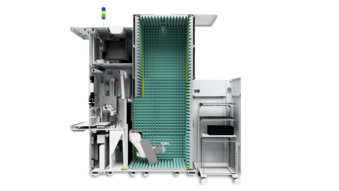

Vertical absorber box – compact design with a small footprint

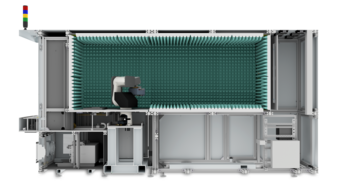

Horizontal absorber box – flexible length for different test requirements

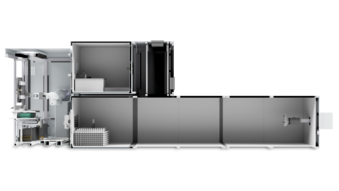

Stacked absorber box – reduced cycle times through parallel test processes
Target module – flexibly adaptable to customer-specific test tasks

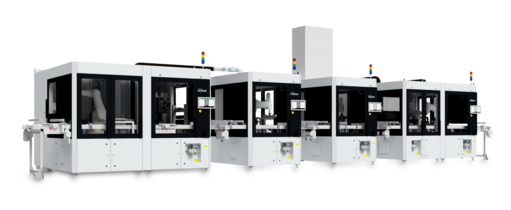

System Integration & Series Production
Our radar test systems are consistently designed for continuous industrial operation:
High system availability
Stable process integration into existing production lines
Optional MES connectivity
Remote maintenance and service access available
Robust architecture for 24/7 operation in series production
Customisation & Engineering
Each system is precisely tailored to our customers’ requirements. Our experienced engineering teams deliver customised solutions – from mechanical design and software through to the user interface.
Test systems built to customer specifications
Flexible user interfaces and functional scopes
Continuous development in close collaboration with our customers
