BAUMANN te|box


the platform for increased test system flexibility

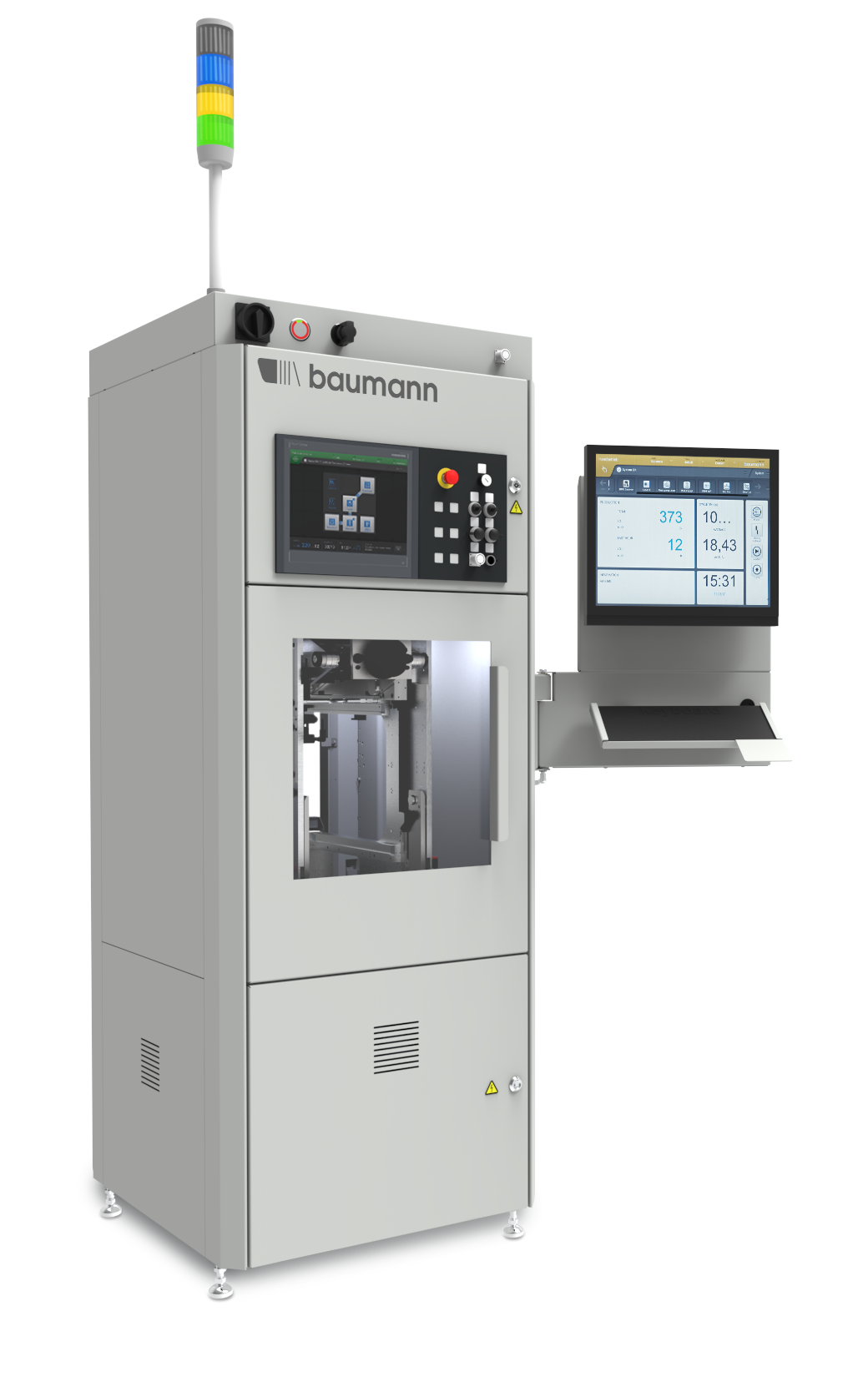

The Baumann te|box is the standardised, flexible platform for test engineering applications. When used to test PCBs and control units, it reliably satisfies the demand for quality assurance and a zero defect strategy during production.

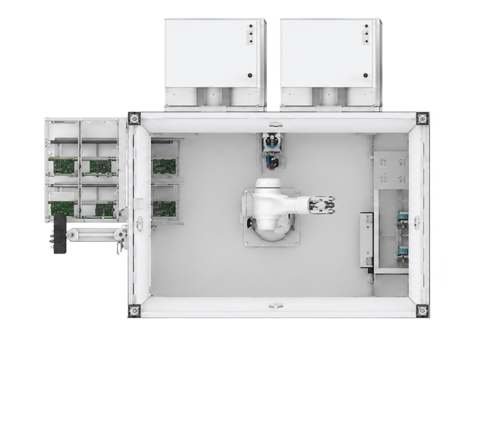

Baumann te|box

Product features:
Cell dimensions

  • Model 1.1 525 mm x 525 mm
  • Model 2.2 700 mm x 700 mm
  • Model 2.4 700 mm x 1050 mm
  • Model 4.4 1050 mm x 1050 mm
  • Model 6.4 1400 mm x 1050 mm
  • Model 8.4 1750 mm x 1050 mm
  • Height: 1800 mm ± 50 mm with adjustable feet

Test procedures

  • ICT, Flash, FCT
  • HFT (hot function test)
  • Rotation
  • Calibration
  • Pin check
  • Optical end test
  • End of Line
  • etc.

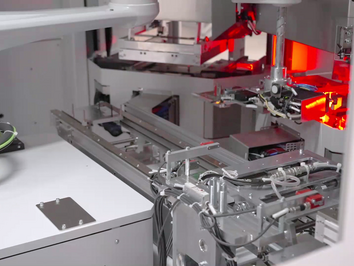

Loading module

  • Manual loading via a drawer system, rotary table or conveyor belt
  • Linking via a conveyor belt
  • Axis system loading
  • Robot loading
  • Loading modules can be retrofitted

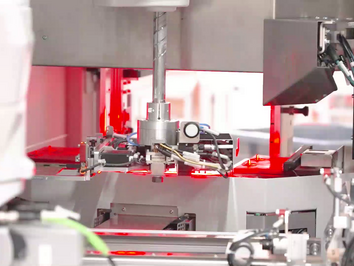

Platform

  • Welded steel base framel

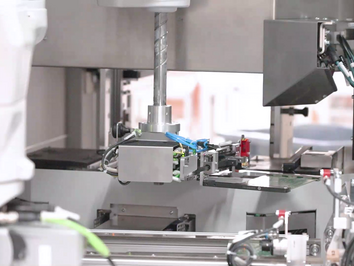

  • C contacting with pneumatic toggle joint mechanism
  • 19" rack with 11 high units for test equipment under the contact mechanism

PCB/Control unit

  • PCB length 42 - 300 mm
  • PCB width: 24 - 240 mm
  • Component clearance: -20/+50 mm
  • Max. component weight: 3 kg
  • Special sizes available upon request

User interface (HMI)

  • 5,7" TFT touch screen, multilingual for operating and controlling all the cell functions
  • Interfaces - SMEMA, Profibus, CAN, AS-I, TCP/IP
